NEW!      GX - Low Loss - High Sat. Alloy

  • Proprietary Alloy powder material designed for EV, PV and GaN
  • Operating frequencies to MHz
  • Toroids from 0.9in (22mm) to 1.84in (46.7mm)
  • Permeabilities: 60μ and 125μ
  • Exceptionally low loss material
  • Custom geometries available
  • No Thermal Aging


Datasheets

   60μ   125μ

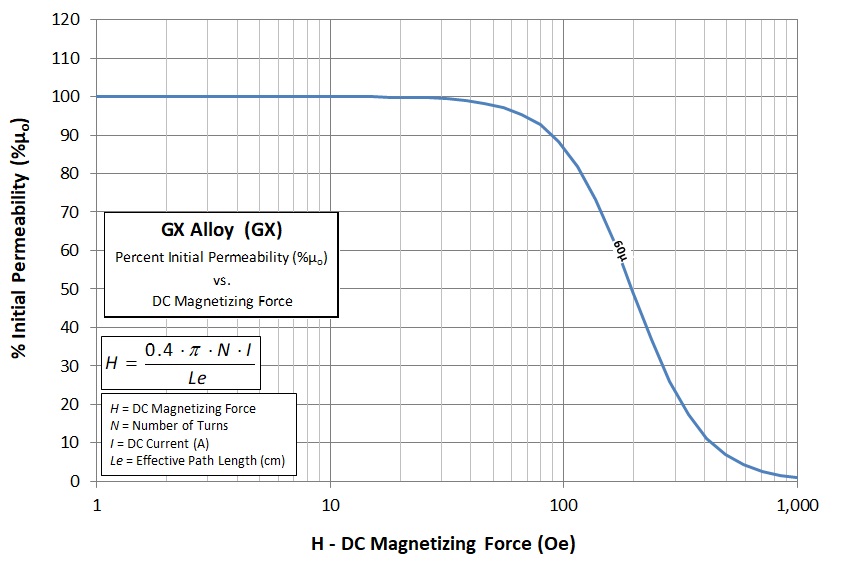

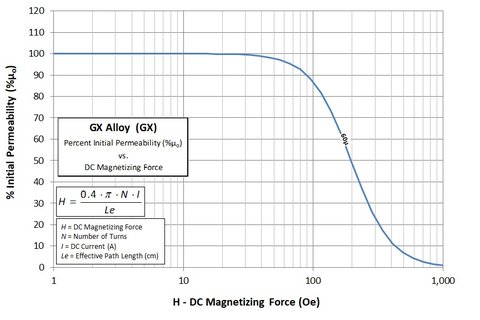

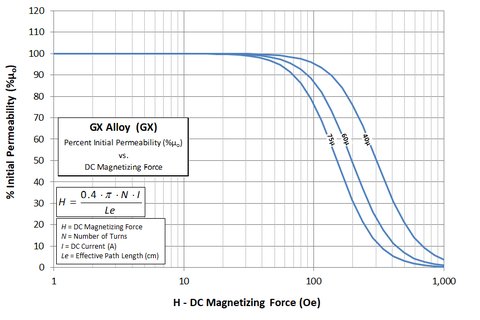

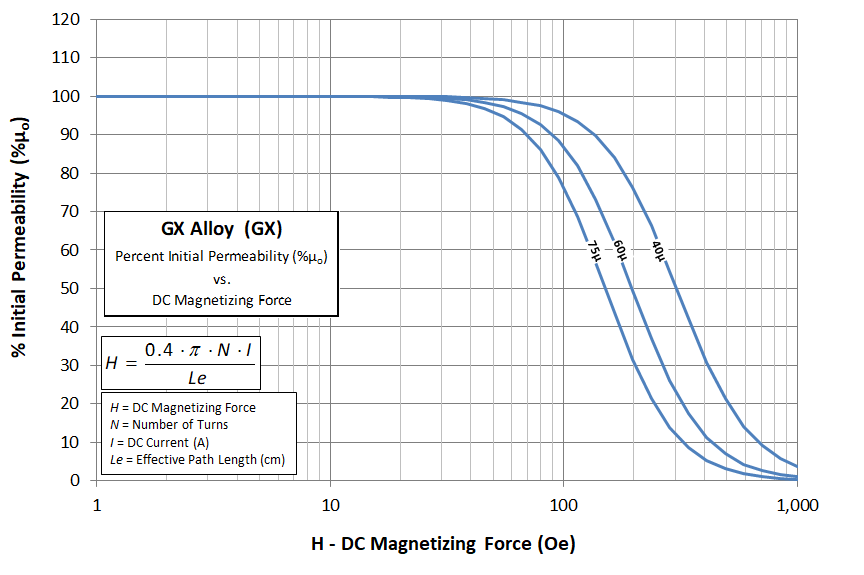

Permeability vs. DC Magnetizing Force

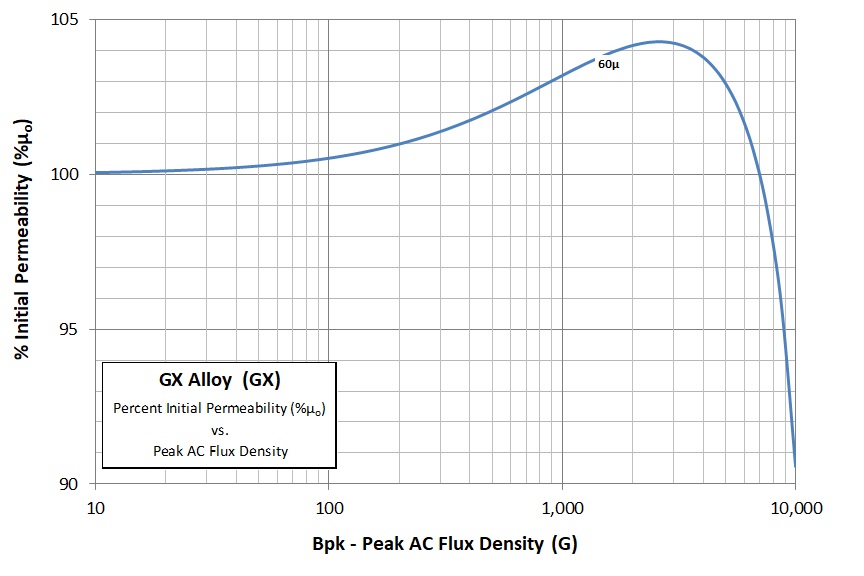

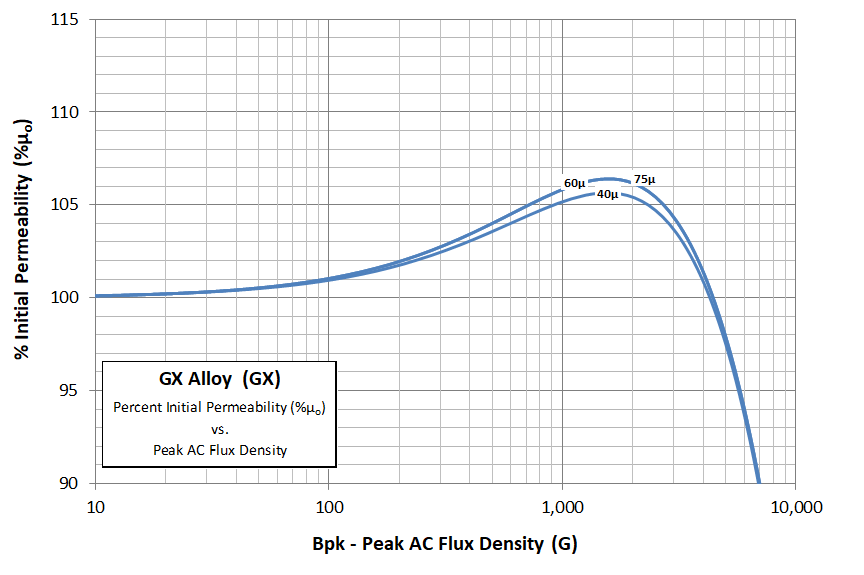

Permeability vs. AC Flux Density

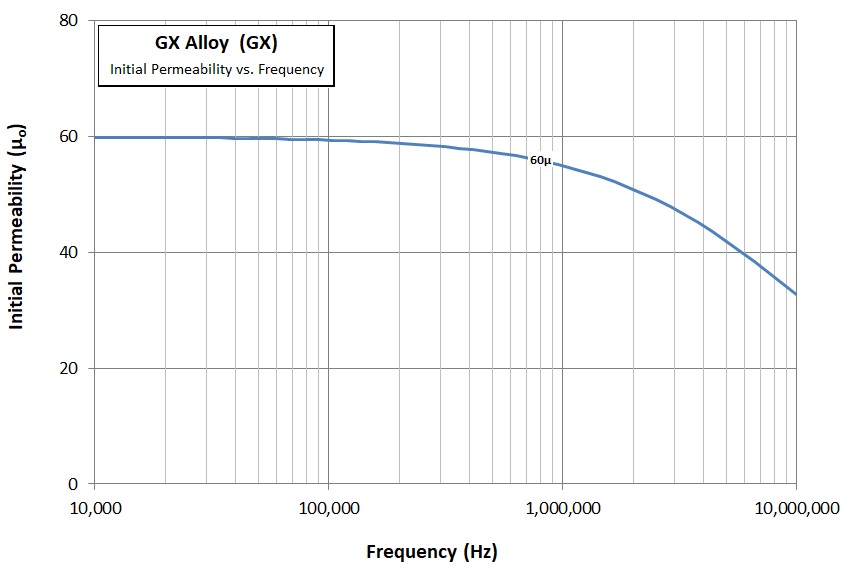

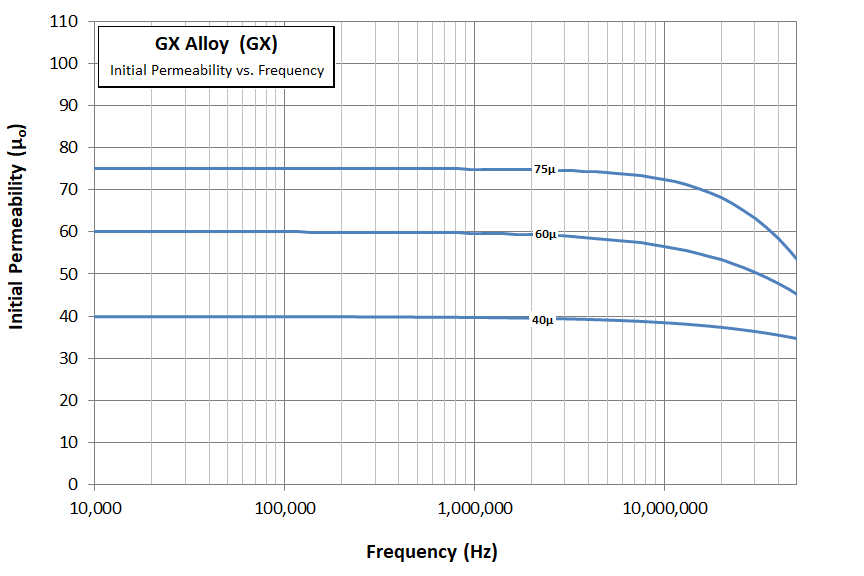

Permeability vs. Frequency

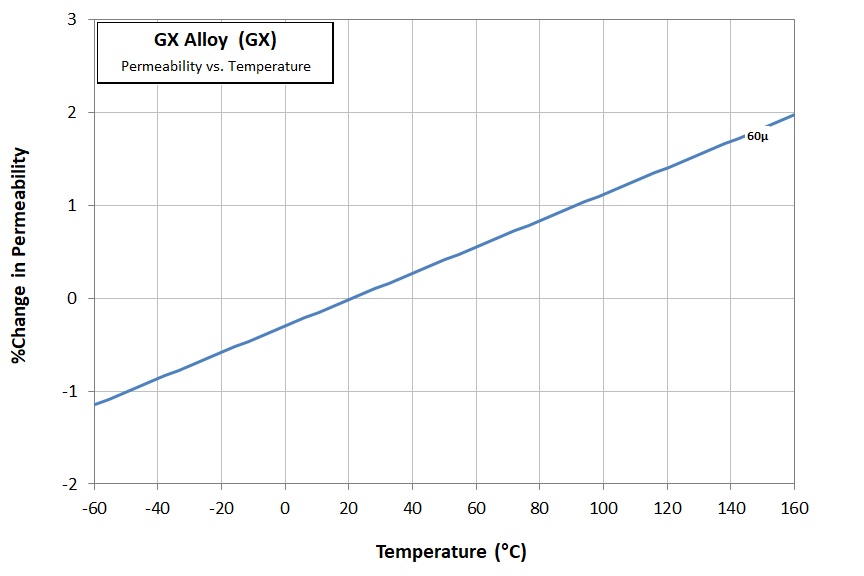

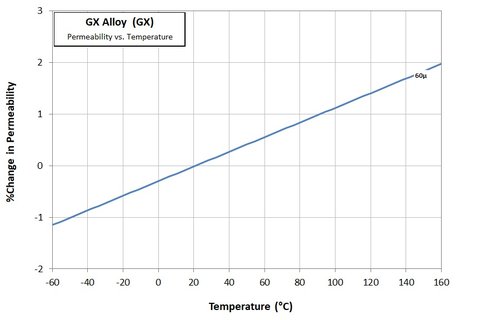

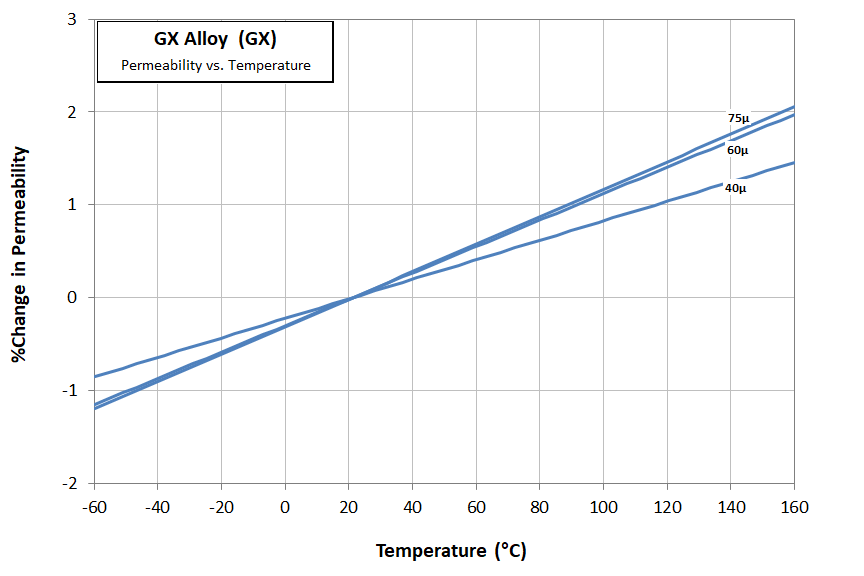

Permeability vs. Temperature




60 Perm



125 Perm



View Available products
